HEM300
Product Overview
HEM series is a new generation of multi-turn electric actuators independently developed and manufactured by the technical team of Heli Company, combining customer requirements and years of R&D experience.
HEM series offers various models customized to user requirements, including basic type, intelligent bus type, split intelligent type and other versions. They safely, stably and reliably adapt to diverse application scenarios in all industries.
The HEM series multi-turn electric actuators can be matched with linear stroke valves such as regulating valves, gate valves and globe valves. When fitted with a part-turn worm gear box, they are also compatible with quarter-turn valves including butterfly valves, ball valves and plug valves.
The direct output torque of HEM series ranges from 40 N·m to 3000 N·m, with output speed between 18 rpm and 144 rpm. By matching dedicated electric worm gear boxes with different speeds and gear ratios, a wider range of higher torque outputs can be achieved to meet diverse torque requirements.
Specifications
Basic Type Technical Specifications
General Specifications | Torque Range | 40-3000Nm Direct Output | |
Speed | 18-144(rpm) | ||
Ambient Temperature | -30℃~70℃(Optional: -40℃ ~ 70℃) | ||
Vibration Resistance Grade | In accordance with JB/T8219 standard | ||
Noise Level | Less than 70dB at 1 meter | ||
Electrical Interface | Model HEM10-40 is equipped with 2 NPT1 ports, while Model HEM50-300 comes with 2 NPT3/4 ports. One spare NPT3/4 port is reserved. Custom electrical interfaces are available upon request by contacting the manufacturer. | ||
IP Rating | IP67, IP68 optional (IP68 rated for no water ingress when submerged at 15 meters underwater for 72 hours) | ||
Explosion-proof Grade | Ex db llC T4 Gb/Ex tb IIIC T130℃ Db (Ex db IIC T4 Gb)(Optional) | ||
Connection Dimension | Compliant with JB2920 (3-jaw type) or ISO5210 (thrust type, torque type) | ||
Technical Parameters | Duty Cycle | Switch type: S2-15min, no more than 600 starts per hour. | |
Applicable Voltage | Three-phase: AC380V(+10%)/50Hz(+5%) | ||
Optional configuration: Single-phase AC220V (other voltages can be customized) | |||
Bus Type | None | ||
Switch type | Input | Switch control, built-in contacts, supports 5A@250Vac. | |
Output | Passive contact in open/closed position. | ||
Passive Contacts for Opening/Closing Over-Torque | |||
Optional: Semi-adjustable position feedback potentiometer | |||
Control Modes | Display method | Pointer-style opening indicator | |
Menu Operations | None | ||
On-site control | None | ||
Intelligent Diagnosis of Data Records | None | ||
Others | Other features | Torque protection (no over-torque device at speeds above 36 rpm) | |
Motor overheat protection | |||
Moisture-proof heater (moisture-proof device) | |||
Intelligent Technical Parameters
General Specifications | Torque Range | 40-3000Nm Direct Output | |
Speed | 18-144(rpm) | ||
Ambient Temperature | -30℃~70℃ (optional -40℃-70℃) | ||
Vibration Resistance Grade | In accordance with JB/T8219 standard | ||
Noise Level | Within 1m< 70dB | ||
Electrical Interface | The HEM10-40 model has two NPT1 ports, and the HEM50-300 model has two NPT3/4 ports. One spare NPT3/4 port is included (customization is available upon request from the manufacturer for other interface requirements). | ||
IP Rating | IP67, IP68 optional (IP68 is defined as leak-proof at 15m depth for 72 hours) | ||
Explosion-proof Grade | Ex db llC T4 Gb/Ex tb IIIC T130° CDb ( Ex db lIC T4 Gb)(Optional) | ||
Connection Dimension | Complies with JB2920 (three-jaw type) or ISO5210 (thrust type, torque type) | ||
Technical Parameters | Duty Cycle | Switch type: S2-15min, no more than 600 starts per hour. | |
Adjustable type: S4-25%, maximum 600 triggers per hour. | |||
Optional configuration: 1200 times per hour | |||
Applicable Voltage | Three-phase: AC380V (±10%); 50Hz (±5%) | ||
Optional configuration: AC220V (other voltages can be customized) | |||
Bus Type | Optional communication types include Modbus, Profibus, and Hart. | ||
Switch type | Input | Switching signals (passive dry contact, active 24V, active 220V, switchable jog hold) | |
Output | Six non-retaining relay contact outputs (five status relays + one general fault relay) | ||
1-channel analog feedback output: 4~20mA, output load: ≤750Ω (Standard configuration: 4~20mA; optional configurations: 0~10V or 2~10V; other configurations are customizable) | |||
Adjustment type | Input | Switching signals (passive dry contact, active 24V, active 220V, switchable jog hold) | |
Analog signal: 4~20mA, input impedance: 65Ω; (optional 0~10V; 2~10V, others can be customized) | |||
Output | Six non-retaining relay contact outputs (five status relays + one general fault relay) | ||
1-channel analog feedback output: 4~20mA, output load: ≤750Ω (Standard configuration: 4~20mA; optional configurations: 0~10V; 2~10V; other configurations are customizable) | |||
Dead Zone | Adjustable by 1.5% throughout the entire travel range. | ||
Signal Reversal | Support | ||
Dishonesty Mode Settings | Support | ||
Control Modes | Display method | Four-level grayscale LCD liquid crystal opening indicator. | |
On/Off/Remote Control/Fault Indicator Light (Digital display of opening percentage, torque percentage) | |||
Menu Operations | Unenable settings (menu settings via remote control or buttons) | ||
Configuration settings (such as valve position, status feedback type, maximum torque, etc.) | |||
On-site control | Non-slow-induction on-site control buttons (open/close/stop) | ||
Non-slow-entry field control knob (local/remote/disabled) | |||
Intelligent Diagnosis | Using infrared remote control in conjunction with menus for fault diagnosis and analysis | ||
Torque Parameters
◎ Due to inertia and wear of the drive shaft sleeve, it is recommended that the operating speed not be too fast when directly installed on a gate valve.
◎ The nominal torque is the maximum torque set in two directions. The stall torque depends on the speed and voltage, and is generally 1.1-2 times the nominal torque.
◎ If you order the 60Hz model, the actuator speed will increase by 1.2 times.
◎ If you require use at 20% above the nominal torque, please contact us.
◎ Three-phase 380V - Switching type and regulating type with a trigger frequency of 600 times (1200-times frequent regulating type optional)
Speed 50 HZ RPM | 18 | 24 | 36 | 48 | 72 | 96 | 144 |
Executor Model | Torque (Nm) | ||||||
Handwheel speed ratio | 80 (optional 20):1 | 60 (optional, 15):1 | 40 (optional, 10):1 | 30 (optional 7.5):1 | 20 | 30 | 20 |
HEM10 | 100 | 100 | 80 | 70 | 60 | 50 | 40 |
◎ Single-phase 220V - Switch type
Speed 50 HZ RPM | 18 | 24 | 36 | 48 | 72 | 96 | 144 |
Executor Model | Torque (Nm) | ||||||
Handwheel speed ratio | 80:1 | 60:1 | 40:1 | 30:1 | 20:1 | X | X |
HEM10 | 70 | 60 | 45 | 40 | 30 | X | X |
◎ Single-phase 220V - Regulated Type
Speed 50 HZ RPM | 18 | 24 | 36 | 48 | 72 | 96 | 144 |
Executor Model | Torque (Nm) | ||||||
Handwheel speed ratio | 80:1 | 60:1 | 40:1 | 30:1 | 20:1 | X | X |
HEM10 | 60 | 45 | 40 | 30 | 20 | X | X |
◎ Single-phase 220V - Regulated Type
Speed 50 HZ RPM | 18 | 24 | 36 | 48 | 72 | 96 | 144 |
Executor Model | Torque (Nm) | ||||||
Handwheel speed ratio | 80:1 | 60:1 | X | X | X | X | X |
HEM10 | 120 | 100 | X | X | X | X | X |

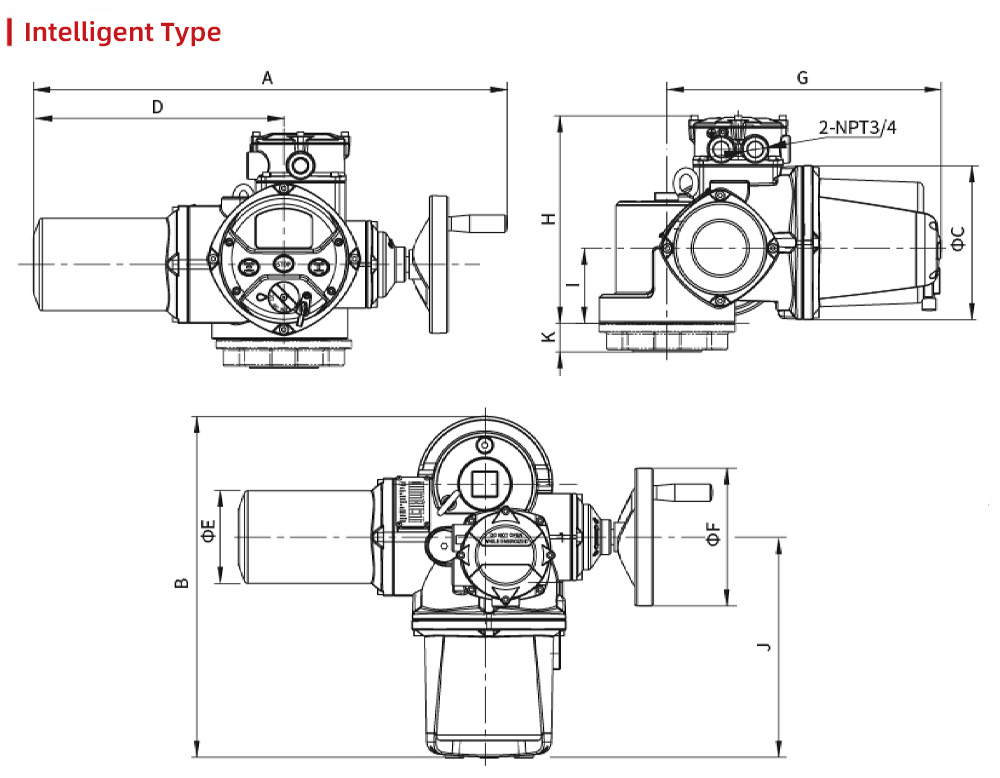

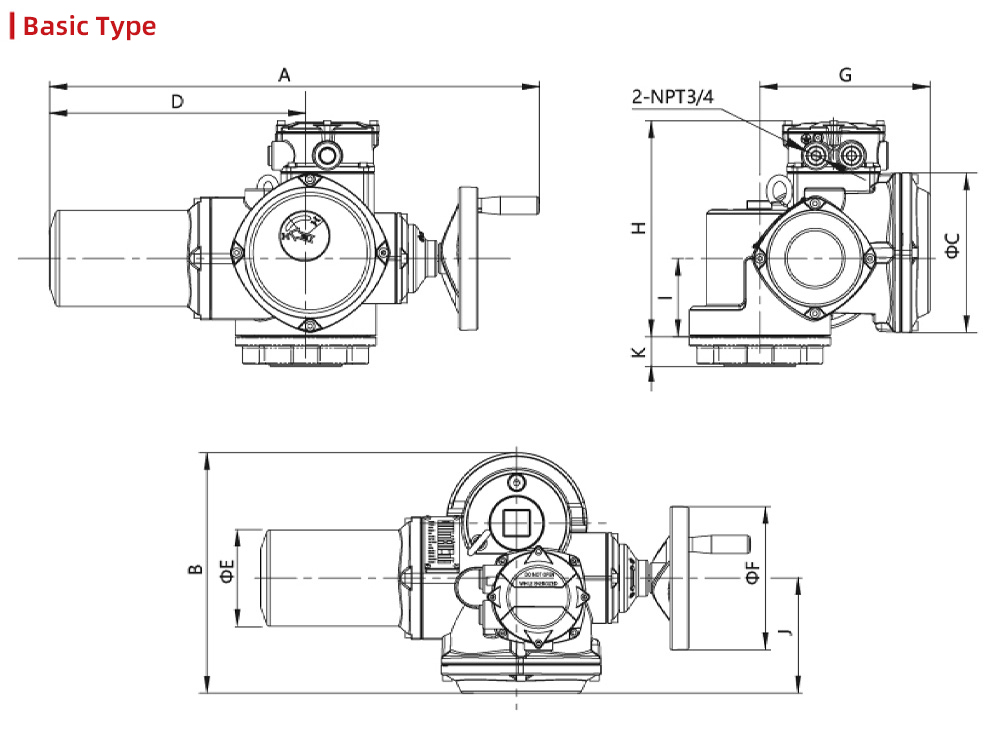

External Dimensions
Model | A | B | ΦC | D | ΦE | ΦF | G | H | I | J | K | Weight (kg) | |
Z Type Flange | T Type Flange | ||||||||||||
HEM300 | 780 | 445 | 222 | 519 | 226 | 247 | 287 | 355 | 165 | 165 | 0 | 125 | 125 |
Model | A | B | ΦC | D | ΦE | ΦF | G | H | I | J | K | Weight (kg) | |
Z Type Flange | T Type Flange | ||||||||||||
HEM300 | 780 | 642 | 222 | 519 | 226 | 247 | 495 | 355 | 165 | 363 | 0 | 125 | 145 |
